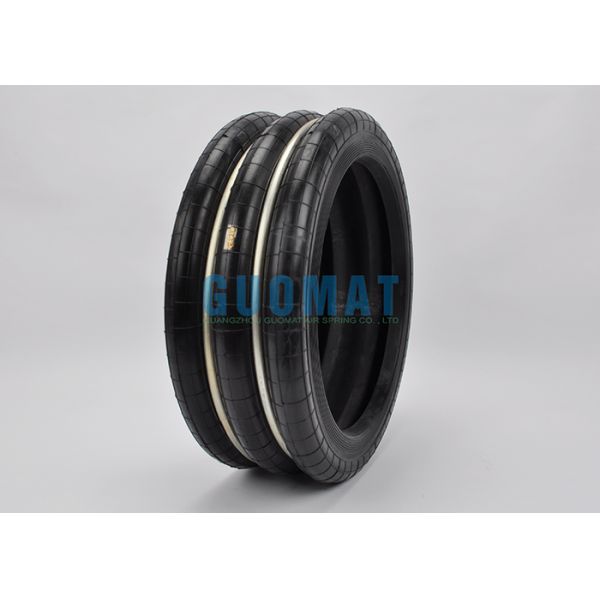

S-160-3/S-160-3R YOKOHAMA Rubber Air Spring 82-227mm Stroke Punch Press Airbag

Brand Name : GUOMAT

Model Number : F-160-3

Certification : ISO/TS16949, ISO9001

Place of Origin : Guangzhou China

MOQ : 5pcs

Price : USD99.9-299.9/PC

Payment Terms : L/C, T/T, Or Others

Supply Ability : 1000PCS/Week

Delivery Time : 3-7 Working Days

Packaging Details : Strong Carton Box or as Customers Requirement

Product Name : Rubber Punch Air Spring

Warranty : One Year

Pressure Ability : 0.2-0.88 MPa

Color : Black

Features : With Waist Ring

YOKOHAMA : S160-3R

Weight : 2.8KG

Usage : For Punching Equipment

Contact Now

S-160-3/S-160-3R YOKOHAMA Rubber Air Spring 82-227mm Stroke Punch Press Airbag

S-160-3/S-160-3R YOKOHAMA Rubber Air Spring 82-227mm Stroke Punch Press Airbag

Product Specifications
Attribute Value
Product Name Rubber Punch Air Spring
Warranty One Year
Pressure Ability 0.2-0.88 MPa
Bumper Block Without
Color Black
Features With Waist Ring
YOKOHAMA S-160-3R
Other Name Yokohama Air Spring
GUOMAT Number: F-160-3
YOKOHAMA Number: S-160-3
YOKOHAMA Number: S 160 3
YOKOHAMA Number: S160-3
YOKOHAMA Number: S-160-3R
YOKOHAMA Number: S 160 3R
YOKOHAMA Number: S160-3R
YOKOHAMA Number: SC-160-3R
YOKOHAMA Number: SC 160 3R
YOKOHAMA Number: SC160-3R
F-160-3 Rubber Air Spring Technical Data
Specification Value
Convolutions 3
Design Height 152mm
Max.Height 227mm
Min.Height 82mm
Common Max.Travel ±53mm
Compression Max.Outer Dia. 220mm
Effective Area 200cm²
Volume 3.4L
Load 9.8KN
Dynamic Spring Constant 157n/mm
Natural Vibration Frequency 2.0Hz
Max.Internal Pressure 0.88Mpa
Internal Pressure Failure 2.9-3.9MPa
Punch Air Spring Features

A punch press air spring is a component that uses compressed air to perform several functions in a stamping or punching machine, including providing force, absorbing shock and vibration, balancing the weight of the slide, and ejecting workpieces. They offer advantages like adjustability, shock absorption, and ease of installation, making them versatile for various machine types.

  • High efficiency: Offers excellent vibration and noise reduction.
  • Adjustability: The force and height can be adjusted with simple inflation and deflation of air pressure.
  • Versatility: Can be installed on a wide range of equipment and can adapt to different loads by changing the air pressure.
  • Safety: Can help prevent accidents by providing stability and absorbing shocks.
  • Low maintenance: As there are no sliding parts, lubricating oil is not required, and they are easy to install and maintain.
