Original Rubber Contitech Industrial Air Bags FS 200-16 CI Convolution Air Actuator G3/4 Air Hole
Description
Original Contitech Number: FS 200-16
Original Contitech Number: FS200-16
Original Contitech Number: FS 200-16 CI
Original Contitech Number: FS200-16 CI
Original Contitech Number: FS 200-16 CI G3/4
Original Contitech Number: FS 200-16 G3/4 CI
Contitech FS 200-16 Specifications
| Max.Stroke: 89mm |
| Max Load: 23kN |
| Max.Diameter: 250mm |
| Max. Height: 140mm |
| Min.Height: 51mm |
| Recommended Max. Working Height: 110mm |
| Plate Diameter: 149mm |
| Mounting Thread: 2XM8 |
| Off-Center: 44.5mm |
| Bellows Material: NR |
Product Features
Diverse applications: GUOMAT's air spring products cover more than 430 models, especially suitable for a variety of heavy vehicles such as trucks.
Superior driving experience: GUOMAT air springs can effectively absorb road impacts and improve vehicle stability and comfort by providing an adaptive suspension system. This can significantly improve the driving experience for operators of heavy vehicles.
Wide market coverage: GUOMAT's air springs are not only suitable for trucks, but also widely used in a variety of transportation vehicles such as trailers and buses to meet the needs of different markets.
Industrial applications: In addition to heavy vehicles, GUOMAT also provides air spring systems for industries such as agriculture, construction, mining, military and marine, demonstrating its flexibility and adaptability in a variety of industrial applications.
GUOMAT also supplies Contitech air springs to meet the various needs of customers. Customers can send us the model they are interested in and we will check and quote for you.

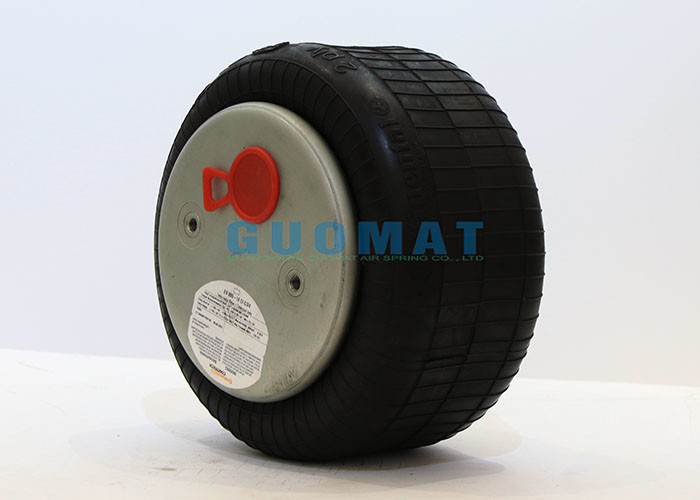

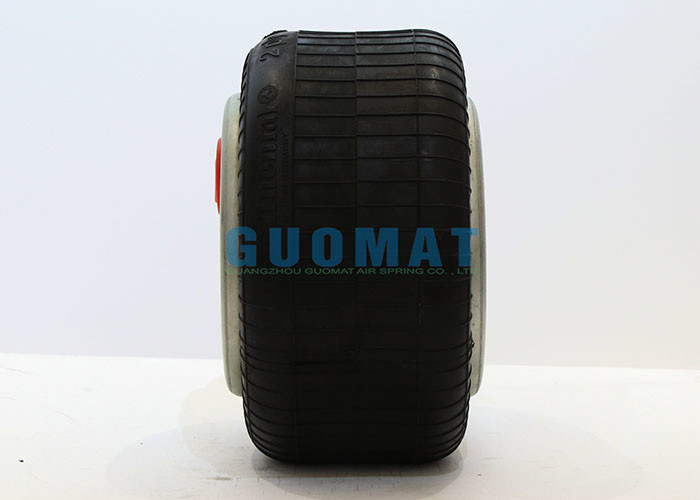

The Related Pictures of FS200-16
