Brand Name : GUOMAT
Model Number : 2B0335
Certification : ISO/TS16949:2009
Place of Origin : GuangDong, China
MOQ : 6PCS
Price : $59.9-69.9/pc
Payment Terms : L/C, T/T, Western Union
Supply Ability : 1000pcs/week
Delivery Time : 2-8 work days
Packaging Details : Strong Carton Box Or As Customers Need
Item Name : Convoluted Air Spring
Material : Rubber + Steel
Warranty : 1 Year
Function : Reduce Shock
Shock Absorber Type : Gas-Filled
Firetsone : A01-760-0335
Stroke : 75mm-230mm
Air Fitting : 3/8NPT
Universal Air Bag A01-760-0335 Firestone Convoluted Air Spring For Commercial Laundry Machines
Product Introduction
GUOMAT 1B0335 air spring can replace the Firestone A01-760-0335.Using high-quality production materials and experienced production team.
Brand: GUOMAT/Neutral
Model o.: 1B0335
Type: Convoluted Air Spring
Material: Rubber and Steel
Warranty: 12 Months
Price: USD
Price Condition: FOB Guangzhou
Packaging: 4 air springs per carton
Package Size: 31.5 x 31.5 x 21 (cm)
Package Weigh: About 1.5 kg
FIRESTONE | A01-760-0335 |
FIRESTONE | A01 760 0335 |
FIRESTONE | A017600335 |
GUOMAT 2B0335 Convoluted Air Spring Technical Data
Maximum height: 230mm |
Minimum height: 75mm |
Stroke: 155mm |
Maximum outer diameter: 203mm |
Top cover plate diameter: 132mm |
Top cover plate screw: 2X3/8-16UNC |
Center distance between top cover plate screws: 70mm |
Distance between top cover plate screw and air hole: 33mm |
Top cover plate air hole: 3/8NPT |
Bottom cover plate diameter: 132mm |
Bottom cover plate threaded hole: 2X3/8-16UNC |
Center distance between bottom cover plate threaded holes: 70mm |
We proudly offer the highest quality replacement air springs that exceed original equipment requirements.
Specifications:
Suitable for almost all trucks, trailer air suspensions and industrial equipment, long-lasting and durable.
Absorbs road shock and extends the life of tractors and drills.
Reduces vibration and driver fatigue.
Long-term trouble-free operation, stable level; strong traction and comfortable ride.
Our Advantages:
1. A wide range of products
2. Accept original equipment orders
3. Affordable, safe and efficient logistics services
4. Flexible payment methods
5. Warranty guarantee
Product Picture
![]() |

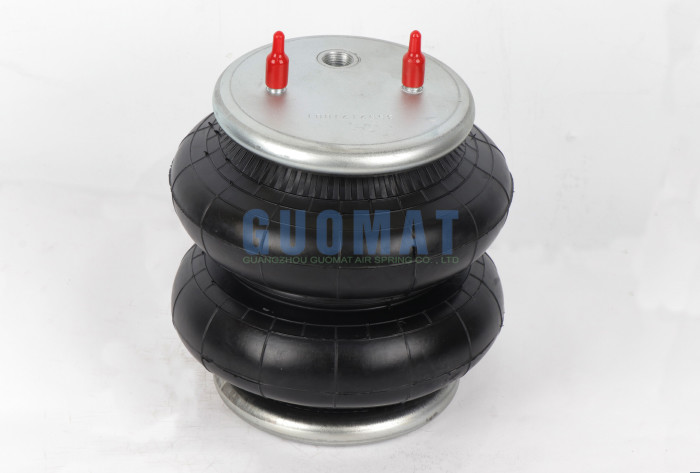

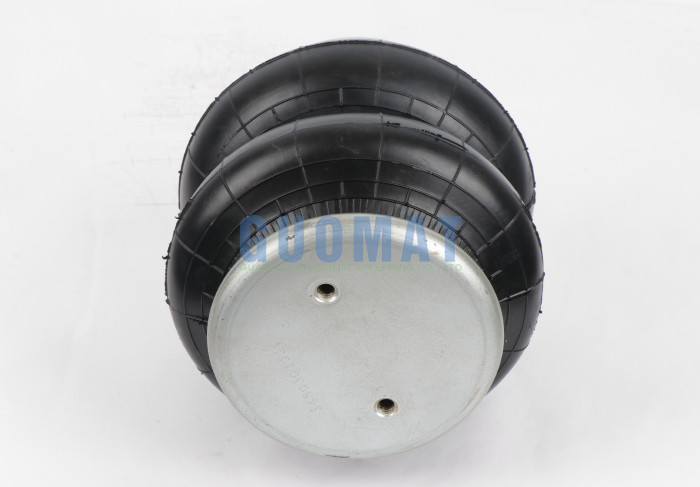

Universal Air Bag A01-760-0335 Firestone Convoluted Air Spring For Commercial Laundry Machines Images |
