VDL Bus 1 153 934 / 1153934 Air Suspension Spring CONTITECH 836 N P06 / 836NP06

Name: VDL Bus 1 153 934 1153934 Air Suspension Spring CONTITECH 836 N P06 836NP06
Brand: GUOMAT
Price: 59 USD

Buy cheap VDL Bus 1 153 934 / 1153934 Air Suspension Spring CONTITECH 836 N P06 / 836NP06 product

Brand Name : GUOMAT

Model Number : 1 153 934 / 1153934

Certification : ISO/TS16949

Place of Origin : Guangdong , China

MOQ : 1pc

Price : $59-159/pc

Payment Terms : T/T, Western Union,paypal or others

Supply Ability : 1000pcs/week

Delivery Time : 2-8 work days

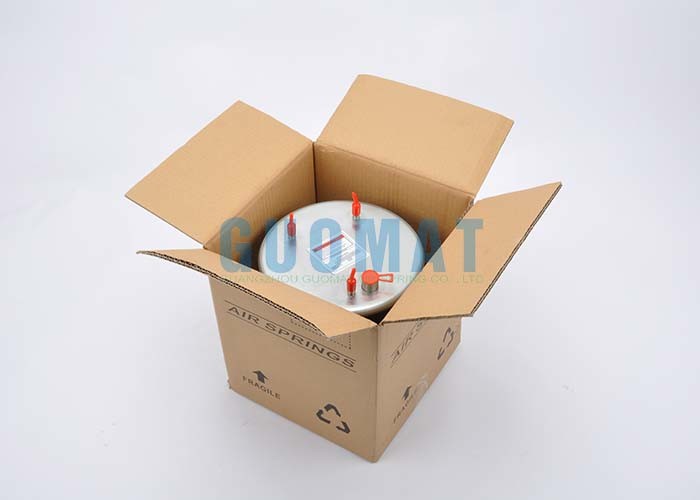

Packaging Details : strong carton box or as customer's need

Material : Rubber Bellows ,Steel Piston

CONTITECH : 836 N P06 / 836NP06

Other Name : VDL Bus Air Spring

Cover Plate OD : Ø273 mm

Air inlet / Air Fitting : 1/4NPT

VDL Bus : 1 153 934 / 1153934

Contact Now

VDL Bus 1 153 934 / 1153934 Air Suspension Spring CONTITECH 836 N P06 / 836NP06

OEM Cross Number:

GUOAMT NO.:1T836NP06

CONTITECH 836 N P06 / 836NP06 / 836N P06

OEM Suspension Supplier Number:

VDL Bus 1 153 934

Technical data

❶ screw bolt / Stud

Top Cover Plate screw bolt / Stud Tooth :3 pcs xM10

Combine bolt : 1 pcs M16x1.5

Distance between two closer bolt:110 mm

Distance between two faster bolt:155 mm

Distance between combined bolt and bolt:28 mm

❷ Gas Hole / Air inlet /Air Fitting

Gas Hole / Air inlet : 1/4NPT

❸ Cover Plate

Top Cover Plate Diameter: Ø273 mm

❹Rubber Bellows

❺ Bumper block / Buffer block

Without Bumper Block

❻ Bottom Piston

Bottom Piston Diameter : Ø230mm

Bottom Piston Height :130 mm

❼ Piston Bolt

Piston Bolt Tooth : 1XM16

In the Middle of the Piston
