FD70-13 CI Contitech Rubber Suspension Air Spring 2B7070 Double Convoluted Air Actuator
Product Description
GUOMAT 2B7070 is an air spring produced by GUOMAT as a replacement for the Continental ContiTech FD70-13 air spring. Its technical parameters are the same as FD70-13 air spring. GUOMAT 2B7070 air springs are used not only in trucks and trailers, but also in a variety of applications such as vibrating conveyors, large dryers, centrifuges and coordinate measuring machines.
Item Name: Industrial Air Spring
Brand: GUOMAT/Neutral
Model Number: 2B7070
Type: Convoluted Type
Material: Rubber and Steel
Warranty: 1 Year
MOQ: 1 Piece
Color: Black
Origin: Mainland China
Size: Manufactured to Standard Specifications
Contitech: FD70-13/FD 70-13/FD70-13CI/FD 70-13 CI
2B7070 GUOMAT Industrial Air Spring Technical Data

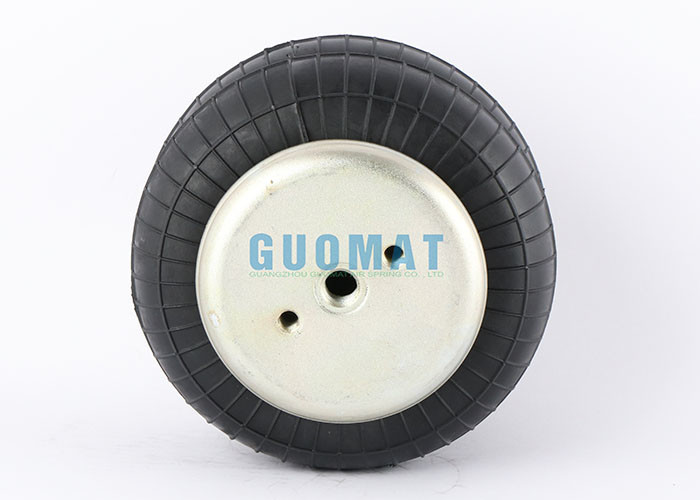

The diameter of the top cover of 2B7070 is 105 mm, the air hole specification is G1/4, the threaded hole specification is 2 M8X1.25, and the center distance between the threaded holes is 44.5 mm.
The diameter of the top cover of 2B7070 is 105 mm, the threaded hole specification is 2 M8X1.25, and the center distance between the threaded holes is 44.5 mm.
The outer diameter of 2B7070 is 146 mm and the natural height is 162 mm
Contitech Double Convolution Bellows
| FD 40-10 CI | FD40-10 CI |
| FD 70-13 CI | FD70-13 CI |
| FD 110-15 CI | FD110-15 CI |
| FD 120-17 CI | FD120-17 CI |
| FD 120-20 CI | FD120-20 CI |
| FD 200-19 CI | FD200-19 CI |
| FD 200-22 CI | FD200-22 CI |
| FD 200-25 CI | FD200-25 CI |
| FD 330-22 CI | FD330-22 CI |
| FD 330-30 CI | FD330-30 CI |
| FD 530-22 CI | FD530-22 CI |
| FD 530-30 CI | FD530-30 CI |
| FD 530-35 CI | FD530-35 CI |
| FD 960-22 CI | FD960-22 CI |
| FD 1330-25 CI | FD1330-25 CI |
Preventive Maintenance Air Springs
We should check the following when repairing the car (never try to repair the air spring when the air spring is filled with air pressure)
1. Check the air spring outer diameter. Check for irregular damaged cracks
2. Check the air pipe. Make sure there is no contact between the air tube and the outer diameter of the air spring.
3. When the air spring is at its maximum outer diameter, check whether the gap around it is sufficient.
4. Check whether there is accumulation of foreign matter on the outer diameter of the piston
5. The correct suspension height should be maintained.
6. The height valve (height control valve) plays an important role in keeping the entire air spring system working as required. Clean, inspect or replace if necessary.
7. Check whether the shock absorber is installed correctly, and check whether there is oil leakage and whether the end connecting parts are damaged.
8. Check the tightening of all mounting hardware (nuts, screws)
