ContiTech FS200-10 Firestone W01-M58-6374 Double Convoluted Rubber Air Spring Air Shock
Product Description

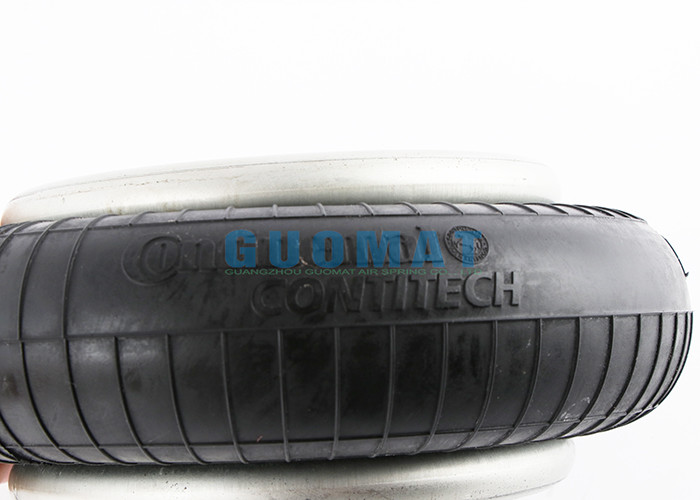

The FS200-10 Contitech Air Spring is an industrial air spring manufactured by Contitech. It is a single convoluted air spring that is commonly used in various industrial applications. The air spring is designed to provide suspension and vibration isolation capabilities, making it suitable for use in heavy-duty machinery, vehicles, and equipment.
ConTitech Industrial Air Spring
Contitech OEM Number FS200-10 CI
Contitech OEM Number FS 200-10 CI
Contitech OEM Number FS200-10 CI 3/4 NPT M8
Contitech OEM Number FS 200-10 CI 3/4 NPT M8
Contitech OEM Number FS 200-10 CI 3/4 NPT OS
Contitech OEM Number FS200-10 CI 3/4 NPT OS
Contitech OEM Number FS 200-10 CI 1/4 NPT M8
Contitech OEM Number FS200-10 CI 1/4 NPT M8
Contitech OEM Number FS 200-10 CI 1/4 NPT OS
Contitech OEM Number FS200-10 CI 1/4 NPT OS
Contitech OEM Number FS200-10/FS 200-10/FS20010/FS200 10
Purchase Order Data
| Order NO. | Type |
| 72850 | Rubber bellows only |
| 60030 | With crimped plates G1/4 air inlet A=44.5mm excentrical |
| 2681047000 | With crimped plates and bumper A=44.5mm excentrical |
| 2681045000 | With crimped plates G3/4 air inlet A=38.1mm excentrical |
| 69695 | With stainless steel crimped plates G3/4 air inlet A=38.1mm excentrical |
| Mark | A=distance between air hole and threaded hole |
Cross Reference Numbers
Firestone Number: W01-M58-6374/WO1-M58-6374/W01M586374/WO1M586374/W01 M58 6374/WO1 M58 6374
Goodyear Number: 1B9-215/1B 9-215/1B9 215/1B 9 215/1B9215/1B 9215
Goodyear Bellows Number: 578913201/578-91-3-201/578 91 3 201
ENIDINE Number: YI-1B9-215/YI1B9215/YI 1B9 215
FS200-10 Contitech Rubber Air Spring Technical Data
The maximum outer diameter of the air spring is 250 mm, the suitable installation distance is 265 mm, the maximum height is 140 mm, the minimum height is 51 mm, and the recommended height is 110 mm. The diameter of the cover is 161 mm, the size of the threaded holes is M8x15mm, and the center distance between the threaded holes is 89 mm.
Contitech Single Convoluted Air Spring
| ContiTech Number | Air Fitting | ContiTech Number | Air Fitting |
| FS 40-6 CI | 1/8NPT | FS 200-10 CI | 3/4NPT |
| FS 50-5 CI | 1/4NPT | FS 330-11 CI | 3/4NPT |
| FS 70-7 CI | 1/4NPT | FS 330-14 CI | 3/4NPT |
| FS 100-10 CI | 3/4NPT | FS 530-11 CI | 3/4NPT |
| FS 120-9 CI | 3/4NPT | FS 530-14 CI | 3/4NPT |
| FS 120-10 CI | 3/4NPT | FS 960-12 CI | 3/4NPT |
| FS 120-12 CI | 3/4NPT | FS 1330-11 CI | 3/4NPT |
