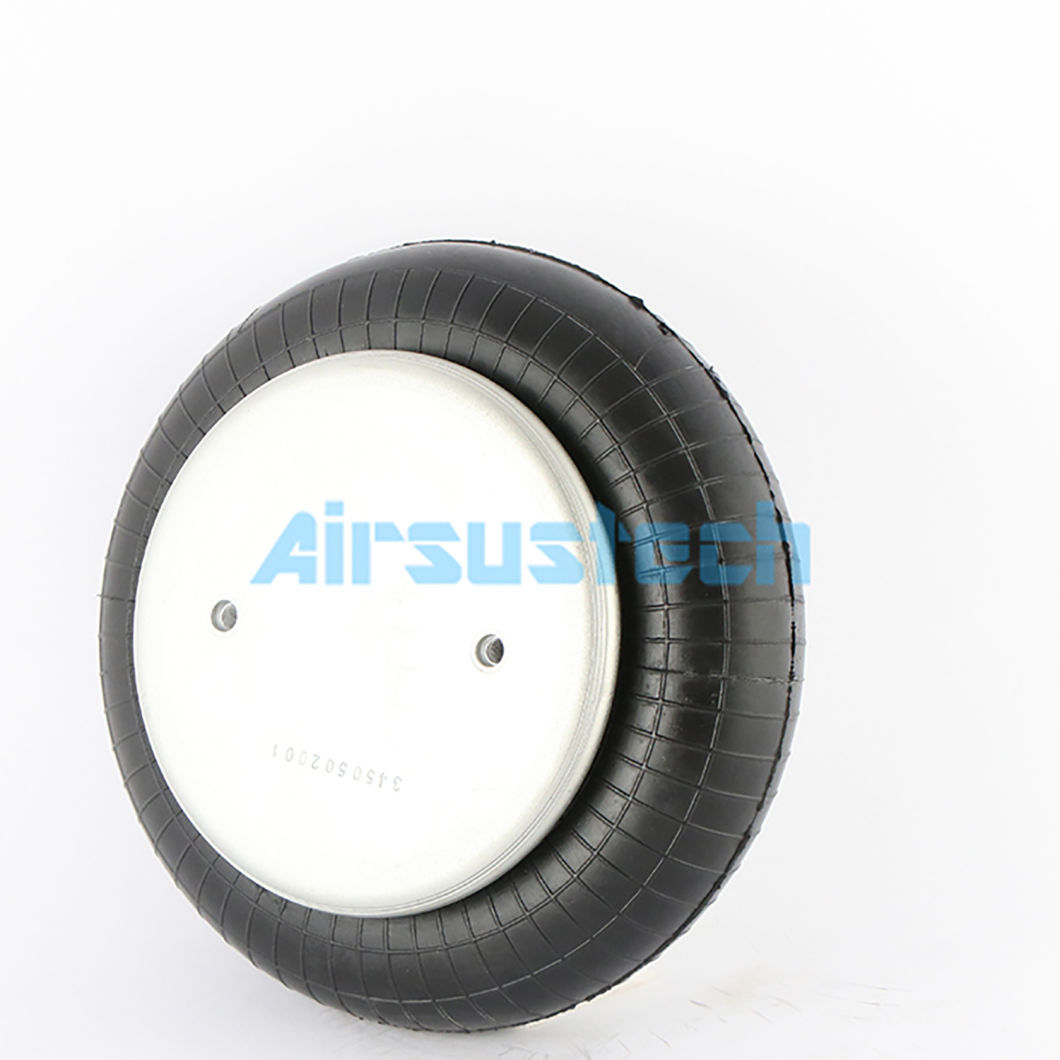

Cross Contitech FS200-10 Phoenix SP1B12 G3/4 Air Inlet Rubber Air Bag

Name: Cross Contitech FS20010 Phoenix SP1B12 G34 Air Inlet Rubber Air Bag
Brand: GUOMAT
Price: 59.9 USD

Buy cheap Cross Contitech FS200-10 Phoenix SP1B12 G3/4 Air Inlet Rubber Air Bag product

Brand Name : GUOMAT

Model Number : 1B20010-3/4

Certification : ISO/TS16949:2009

Place of Origin : Guangzhou,China

MOQ : 5pcs

Price : USD59.9-69.9/PC

Payment Terms : L/C, T/T, Western Union Or Others

Supply Ability : 1000PCS/Week

Delivery Time : 3-7 Working Days

Packaging Details : Strong Carton Box or as Customers Requirement

Type : Shock Absorber

Quality : 100 % Tested

Function : Reduce Shock

Cross Reference : Contitech FS 200-10

HS Code : 8708809000

Warranty : 12 Months

Material : Rubber and Steel

Customization : Available | Customized Request

Contact Now

Cross Contitech FS200-10 Phoenix SP1B12 G3/4 Air Inlet Rubber Air Bag

Cross reference

Fire-stone W01-M58-6374 / W01 M58 6374 / W01M586374 / WO1M586374 / WO1-M58-6374 / WO1 M58 6374
Contitech: FS 200-10 / FS200-10
Phoenix: SP 1B 12 / SP1B12 / SP 1 B 12
Dunlop(FR): : 9"1/4x1 S09101
Bo sch: 822419004
Fes to: : EB-250-85
Norgren: : PM/31091(81/4x1)

The Contitech FS200-10 Technical Data

The cover plate diameter: 161mm

Threaded hole specifications: M8,15mm

Center distance between threaded holes: 89mm

Rubber bellows max diameter: 250mm

Max height: 140mm

Min height: 51mm

Type	Order No.
Rubber bellows only
with crimped plates.G1/4 air inlet A=44.5mm excentrical
with crimped plates and bumper A=44.5mm excentrical
with crimped plates.G3/4 air inlet A=38.1mm excentrical
with stainless steel crimped plate. G3/4 air inlet A=38.1mm excentrical
