4 2/1''X1 DUNLOP Industrial Air Spring W01-R58-4050 Firestone Convoluted Rubber Bellows
Product Description
Item Name: Air Springs Bellows Actuator
Material: Rubber+Steel
Warranty: 12 Months
Type: Assembly with Flange
MOQ: 1 Pieces
Package: Brown Carton
Delivery Time: 3-10 Working Days
GUOMAT 4.5X1 Assembly Type Industrial Air Spring OEM Numbers
OEM Firestone W01R584050
OEM Firestone W01 R58 4050
OEM Firestone W01-R58-4050
OEM Firestone WO1R584050
OEM Firestone WO1 R58 4050
OEM Firestone WO1-R58-4050
OEM Dunlop 4 1/2''X1
OEM Dunlop 41/2''X1
OEM Dunlop SP2334
OEM Dunlop SP 2334
OEM Contitech FS44-5
OEM Contitech FS 44-5
OEM Contitech FS44-5 DI
OEM Contitech FS 44-5 DI
OEM Norgren PM/31041
OEM Norgren PM31041
OEM Norgren PM 31041
OEM Parker 9109400
Equivalent: Firestone w01r584050 ; Contitech fs44-5 ; Dunlop 4 1/2x1 ; Norgren pm/31041
Industrial Air Spring 4 1/2x1 Technical Data
Top Cover Plate Diameter: Ø110mm
Air Fitting: G3/8 ; 3/8BSP
Center Distance Between Screws: Ø93mm
Cover Plate Thickness: 17mm
- Bottom Data for Air Spring
Bottom Cover Plate Diameter: Ø110mm
Center Distance Between Screws: Ø93mm
Cover Plate Thickness: 17mm
- Rubber Bellows for Air Spring
The Rubber Bellows Diameter: Ø120mm
Height: 78mm
How Air Springs Work on Bark Peeling Machine
Air springs are commonly used in bark peeling machines to provide shock absorption and isolation from vibrations. An air spring consists of a cylindrical elastomeric bellow sealed between two end plates to form a chamber. When compressed air is added to the chamber, the bellow expands and lifts the upper plate, lifting the load on top of the air spring. The air spring provides a cushion-like effect that isolates the load from shocks and vibrations. The amount of load carried by the air spring can be adjusted by varying the air pressure in the chamber. Guangzhou Guomat Air Spring, a Guangzhou-based company, supplies and installs air spring suspension systems for a variety of industrial applications.
Our company adopts the most advanced domestic air spring dedicated processing equipment and the introduction of foreign production technology of air spring Combined with our unique production process, in accordance with international standards of production, to create a world-class products.
Dunlop Industrial Air Spring Technical Data Summary
| Type | ØMax (mm) | Min.Height (mm) | Max Height (mm) | Total Stroke (mm) | Static Height (mm) | ØPitch Circle (mm) | ØSpace Envelope (mm) | Weight (kg) |
| 4 1/2x1 | 125 | 45 | 90 | 45 | 65 | 93 | 140 | 0.75 |
| 6x1 | 162 | 50 | 110 | 60 | 80 | 127 | 180 | 1.69 |
| 2 3/4x2 | 78 | 65 | 115 | 50 | 92 | 64 | 95 | 0.26 |
| 4 1/2x2 | 125 | 65 | 145 | 80 | 100 | 93 | 140 | 0.93 |
| 6x2 | 168 | 75 | 215 | 140 | 140 | 127 | 180 | 2.08 |
| 21 1/2x2 | 570 | 90 | 390 | 300 | 200 | - | 595 | 21.0 |
| 2 3/4x3 | 78 | 80 | 145 | 65 | 119 | 64 | 95 | 0.57 |
| 4 1/2x3 | 125 | 100 | 200 | 100 | 145 | 93 | 140 | 1.15 |
| 6x3 | 168 | 109 | 262 | 153 | 187 | 127 | 180 | 2.47 |

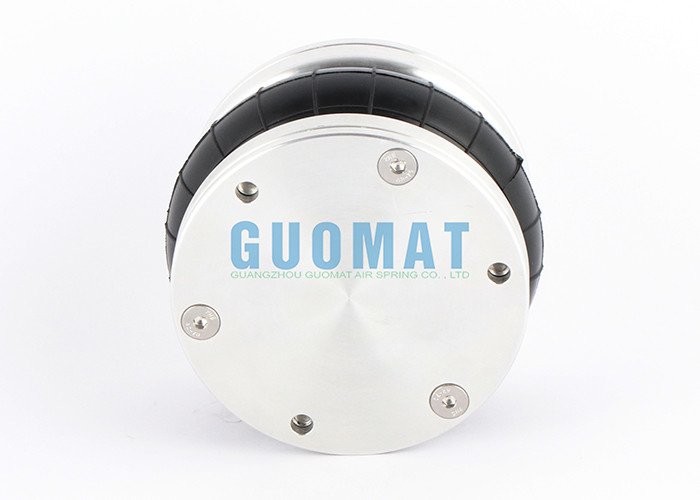

GUOMAT 4.5X1 Industrial Air Spring Bags Real Pictures
