W01-358-7008 Firestone Single Convoluted Rubber Air Spring 1B12-300/313 Goodear Air Bellow
Product Description
GUOMAT 1B5330 Reference Firestone W01-358-7008, with excellent workmanship and high quality materials, one year warranty.
Industrial air spring is a type of pneumatic device that is used to provide support and cushioning in a variety of industrial applications. It consists of a flexible, airtight chamber or bag that is filled with compressed air, which allows it to compress and expand as needed to absorb shocks and vibrations.
Firestone Manufacturer Number: W01-358-7008
Firestone Manufacturer Number: W013587008
Firestone Manufacturer Number: W01 358 7008
Firestone Manufacturer Number: WO1-358-7008
Firestone Manufacturer Number: WO13587008
Firestone Manufacturer Number: WO1 358 7008
Contitech Manufacturer Number: FS 330-11 474
Contitech Manufacturer Number: FS330-11 474
Contitech Manufacturer Number: FS 33011 474
Goodyear Manufacturer Number: 1B12-300
Goodyear Manufacturer Number: 1B12-313
Goodyear Manufacturer Number: 1B 12-300
Goodyear Manufacturer Number: 1B 12-313
Triangle Manufacturer Number: 6374
Triangle Manufacturer Number: 4474
Holland(Neway): 90557226
GUOMAT 1B5330 AIRSTROKE ACTUATOR
Maximum Height (mm): 160
Minimum Height (mm): 55
Compressed Height: 105
Bead Plate Diameter (mm): 231
Blind Nut: 3/8-16UNC
Blind Nut Centers (mm): 157.5
Number of Blind Nuts on the Top Bead Plate: 2 pcs
Number of Blind Nuts on the Bottom Bead Plate: 2 pcs
Air Inlet: 1/4NPTF
Port Offset from Blind Nut Centerline (mm): 73
Firestone Style19 Rubber Air Spring
| W01-358-7008 | Blind Nuts,1/4NPT |
| W01-358-7009 | Blind Nuts,1/4NPT,Bumper |
| W01-358-7011 | Blind Nuts,3/4NPT |
| W01-358-7012 | Blind Nuts,3/4NPT,Bumper |
| W01-358-7023 | Countersunk Steel Bead Rings,1 5/8 Bolts,Nuts,Washers |
| W01-358-0134 | Rubber Bellows Only |
Advantages of GUOMAT Products
1. Excellent material
2. Effective impact
3. In-situ installation
4. Comfortable and stable
5. Long life
6. Eliminate abnormal noise
7. Competitive factory price
8. In stock
Firestone Assembly Number to GUOMAT
| FIRESTONE | GUOMAT | FIRESTONE | GUOMAT |
| W01-M58-6165 | 1B6165 | W01-358-6900 | 2B6900 |
| W01-358-7731 | 1B7731 | W01-358-6910 | 2B6910 |
| W01-M58-6374 | 1B6374 | W01-M58-7892 | 2B7892 |
| W01-358-7009 | 1B7009 | W01-358-5900 | 2B5900 |
| W01-358-7451 | 1B7451 | W01-358-7400 | 2B7400 |
| W01-358-6923 | 2B6923 | W01-358-7405 | 2B7405 |
| W01-358-6884 | 2B6884 | W01-358-7410 | 2B7410 |

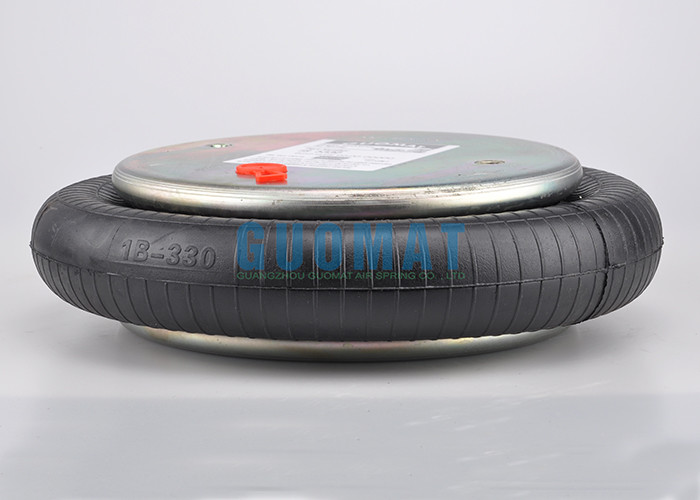

The Real Pictures of 1B5330 Single Convoluted Air Spring
