Guomat 2B6943 Replaces Firestone W01-358-6943 Double Convoluted Air Suspension Spring Bags

Brand Name : GUOMAT

Model Number : 2B6943

Certification : ISO/TS16949:2009

Place of Origin : GuangDong, China

MOQ : 6pcs

Price : $59.9-69.9/pc

Payment Terms : T/T, Western Union, L/C

Supply Ability : 1000pcs/week

Delivery Time : 2-8 work days

Packaging Details : Strong Carton Box Or As Customers Need

Material : Natural Rubber

Warranty : 12 Months

Cover Plate Dia. : 160mm

The Stroke : 75-325 mm

Goodyear : 2B9-250

Spring Style : Double Convoluted Style

Color : Black

Contitech : FD 200-25 426

Contact Now

Guomat 2B6943 Replaces Firestone W01-358-6943 Double Convoluted Air Suspension Spring Bags


Product Description



Firestone: W01-358-6943

Firestone: W01 358 6943

Firestone: W013586943

Firestone: WO1-358-6943

​Firestone: WO1 358 6943

​Firestone: WO13586943

Contitech: FD200-25 426

Contitech: FD 200-25 426

Contitech: FD200 25 426

Contitech: FD 200 25 426

Contitech: 161332

Goodyear: 2B9-250

Goodyear: 2B9 250

Goodyear: 2B 9-250

Goodyear: 2B 9 250

Goodyear: 578923206

Goodyear: 578 923 206

Triangle: 6332

Triangle: 4426



Watson&Chalin

AS-0041

Neway/SAF

90557237

V-Steer II (Lift Bag)

Van Raden

Ridewell

1003586943C

Tuthill

6352



Cross-referencing the list means this airbag may be a suitable replacement for the part number listed. Carefully check the size and location of the mounting holes and studs to ensure the airbag is suitable for your application.



Item Name: Goodyear Industrial Air Spring

Item Number: 2B6943

Material: Rubber

Warranty: 12 Months

Condition: New



Technical Data

Part Number

2B 6943

OEM Number

Contitech FD 200-25 426

Working temperature

-40°C bis +70°C

Failure testing

≥3 millions

Top Cover Plate Diameter

160mm

Bottom Cover Plate Diameter

160mm

Gas Hole / Air inlet

1/4NPTF

Rubber Bellows MAX Diameter

262mm

The Working Stroke

MAX 325 mm to MIN 79 mm

Top Cover Plate Screw (Nut) Tooth

2X1/2-13UNC

Bottom Cover Plate Screw (Nut) Tooth

2X3/8-16UNC

Screw Center Distance of Top Cover Plate

89mm

Distance Between Gas Hole and Screw of Top Cover Plate

44.5mm

Screw Center Distance of Bottom Cover Plate

89mm



Product Features


Excellent shock absorption
The traditional steel coil spring will generate self-vibration due to the impact of the object while damping. This product uses high-quality imported rubber to avoid this problem.



Effectively reduce noise
The vibration action area of the punch air spring is the part of the rubber airbag in the middle.



Stable state, quality assurance
Each of our products will be tested for air tightness before delivery to ensure the quality of the product. There is no need to worry about the sand embedded in the gap of the equipment, affecting the control accuracy and damaging the equipment.



Packing & Shipping

Packing Shipping

1. One piece in a poly bag.1piece in a carton.

2. Mark the product numbers and the QTY outside the carton.

3. As your requirement.

1.By sea

2.By air

3.By Express

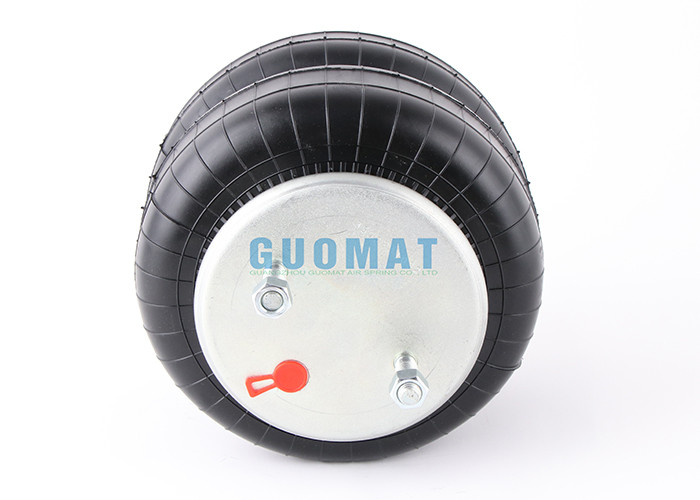

The Real Pictures of Industrial Air Springs

Guomat 2B6943 Replaces Firestone W01-358-6943 Double Convoluted Air Suspension Spring BagsGuomat 2B6943 Replaces Firestone W01-358-6943 Double Convoluted Air Suspension Spring Bags
