Firestone Industrial Air Spring W01-R58-4051 Dunlop 4 1/2 X 2 Double Convolution Air Lift Bag

Product Categories

GUANGZHOU GUOMAT AIR SPRING CO. , LTD

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Firestone Industrial Air Spring W01-R58-4051 Dunlop 4 1/2 X 2 Double Convolution Air Lift Bag

Name: Firestone Industrial Air Spring W01R584051 Dunlop 4 12 X 2 Double Convolution Air Lift Bag
Brand: GUOMAT
Price: 59.9 USD

Buy cheap Firestone Industrial Air Spring W01-R58-4051 Dunlop 4 1/2 X 2 Double Convolution Air Lift Bag product

Brand Name : GUOMAT

Model Number : 4 1/2 X 2

Certification : ISO/TS16949:2009

Place of Origin : GuangDong, China

MOQ : 6pcs

Price : $59.9-69.9/pc

Payment Terms : T/T, Western Union, L/C

Supply Ability : 1000pcs/week

Delivery Time : 2-8 work days

Packaging Details : Strong Carton Box Or As Customers Need

Part Number : W01-R58-4051

Warranty : 1 Year

Material : Natural Rubber + Aluminum

Packing Size : 24*24*24(cm)

Net Weight : 3.5Kg

Dunlop Number : 4 1/2 X 2

Type : Convoluted Type

Product Features : Reduce vibration

Contact Now

Dunlop 4 1/2 X 2 Double Convolution Air Lift Bag Firestone Industrial Air Spring W01-R58-4051

Product Description

4 1/2 X 2 Equivalences

CONTINENTAL CONTITECH : FD 44-10 DI CR

FD 44-10

FD44-10

FD4410

FD 44-10 DI G3/8 CR

FD 44-10 DI CR G3/8

FD 44-10 DI G3/8 M6

FD 44-10 DI CR 70206

FIRESTONE : W01-R58-4051

W01R584051

W01 R58 4051

W01/R58/4051

DUNLOP FR : SP2441

SP 2441

DUNLOP UK (PNEURIDE) : PNP 305590107

PNP305590107

PNP 30559 01 09

YS-AIR : YS-115-2V

YS 115 2V

YS1152V

NORGREN : PM/31042

PM 31042

PM31042

Dimensions(Pouces)

4^1/2X2 / 4^1/2x2 / 4^1/2''x2 / 4.5x2 / 4.5'' x2

The Dimensions of 4 1/2 X 2

Maximum Diameter : 125mm
Space Required : 140mm
Minimum Height : 65mm
Maximum Height : 145mm
Total Stroke : 80mm
Static Height : 100mm
Effective Area at Static Height : 67cm2

Gas Hole : 3/8 BSP

Screw (Nut) : M6

Condition of Use

Maximum Working Pressure	8 bar
Burst Pressure	50 bar
Maximum Angle Between Top & Bottom Plates	15^o
Maximum Axial Offset	10 mm

Operating Temperature

Standard Rubber

Minimum -30℃ (40℃ Static)

Maximum +70℃(+90℃ Static)

Chlorobutyl Rubber

Minimum -25℃ (-30℃ Static)

Maximum +90℃(+115℃ Static)

Precautions to Observe

Do not exceed stated stroke.
Do not inflate assembly when it is unrestricted.
Respect maximum and minimum heights.
The bellows must be securely fixed.
Do not use without air pressure.

Other Kinds of Firestone Air Springs

W01-R58-4087	W01-R58-4088	W01-R58-4089
W01-095-0532	W01-095-0464	W01-358-7808
W01-358-7818	W01-681-7314	W01-358-8042
W01-M58-6126	W01-M58-6127	W01-M58-7953
W01-R58-4081	W01-R58-4043	W01-R58-4050
W01-R58-4051	W01-R58-4076	W01-R58-4035
W01-R58-4052	W01-R58-4078	W01-R58-4036
W01-R58-4053	W01-R58-4070	W01-R58-4095
W01-R58-4054	W01-R58-4085	W01-R58-4045
W01-R58-4055	W01-R58-4056	W01-R58-4057

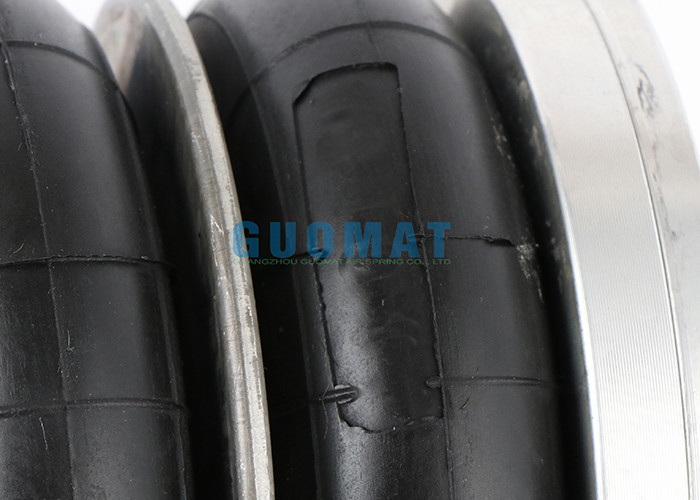

Product Picture

Product Tags:

Industrial Air Spring W01-R58-4051

Dunlop 4 1/2 X 2 Industrial Air Spring

Firestone Industrial Air Spring W01-R58-4051 Dunlop 4 1/2 X 2 Double Convolution Air Lift Bag Images
