Product Description
Product Type:Air Spring
Manufacturer Warranty:12 Months
Material:Natural Rubber
Color:Black
Place of Origin:Guangzhou,China
Certification:ISO/TS16949:2009
Package:Strong Carton
MOQ:1 pcs
Quality:High- Quality
Position:Industrial Machinery and Equipment

Manufacturer Part Number
Firestone Part Number:W01-358-6943
Firestone Bellow Nunber:20F-2
Contitech Part Number:FD 200-25 426
Contitech Bellow Number:161332
Goodyear Part Number:2B9-250
Goodyear Bellow Number:578923206
Triangle Part Number:6332
Triangle Bellow Number:4426

Cross Reference Number


Goodyear Air Spring Technical Data

Top Cover Plate Data
Top Cover Plate Diameter:160mm
Gas Hole / Air inlet:1/4NPTF
Top Cover Plate Screw (Nut) Tooth :2X1/2-13UNC
Screw Center Distance of Top Cover Plate:89mm
Screw and Gas Hole Distance of Top Cover Plate:44.5mm

Bottom Cover Plate Data
Bottom Cover Plate Diameter:160mm
Screw Center Distance of Bottom Cover Plate:89mm
Bottom Cover Plate Screw(Nut)Tooth:2X3/8-16UNC

Rubber Bellow
Rubber Bellow MAX Diameter:262mm
The working Stroke :MAX 325mm to MIN 79mm
Maximum Height :325mm
Minimum Height:79mm
Compression Height:246mm

How to choose an air spring?
Since air springs can be divided into different types according to categories, how to choose air springs is also an important issue in the industrial industry. Before choosing an air spring, you must first understand the specific vibration frequency of the equipment and the specific needs of the equipment. When installing an air spring, you should consider whether to deal with active shock absorption or passive shock absorption, and fully consider the model parameters of the equipment before you can choose the right one. air spring. The air spring shock absorber plays an important role in the operation of the equipment. If the air spring is not used, the machine equipment will generate strong vibration during the operation, which will easily cause damage to the machine and people's health.So we have to choose the appropriate air spring according to these contents.


Product Images

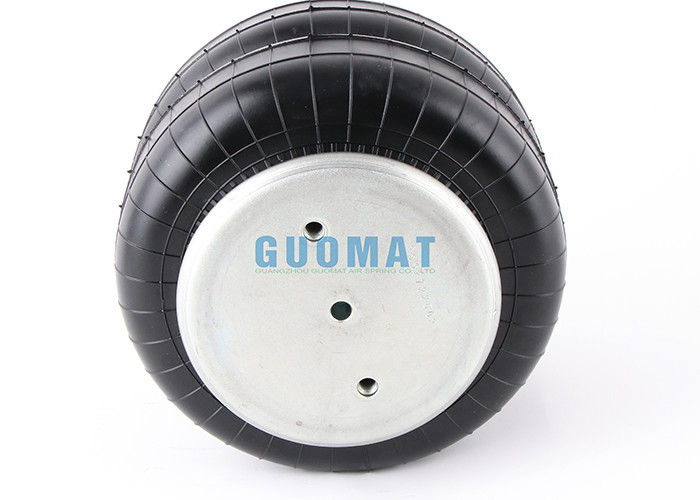

Contitech Rubber Bellows Industrial Air Spring

Industrial Air Spring FD 200-25

2B9-250 Industrial Air Spring
