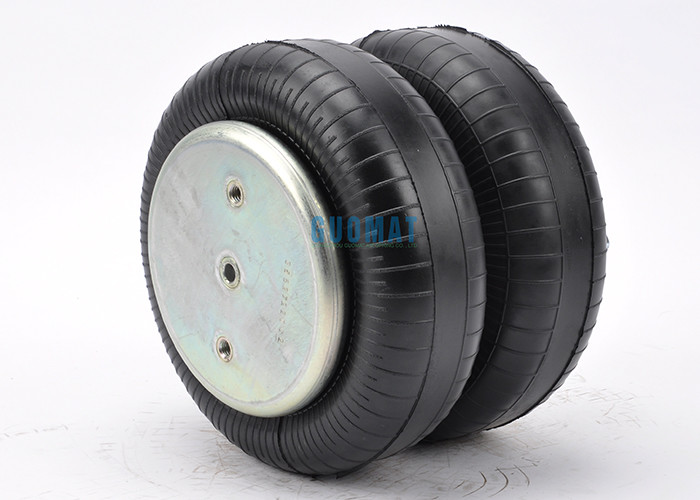

Firestone Double Convoluted Suspension Air Ride Spring W01-358-6890/20

Brand Name : GUOMAT

Model Number : W01-358-6890/20

Certification : ISO/TS16949:2009

Place of Origin : GuangDong, China

MOQ : 6PCS

Price : $59.9-69.9/pc

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1000pcs/week

Delivery Time : 2-8 work days

Packaging Details : Strong Carton Box Or As Customers Need

Product Name : Double Convoluted Air Spring

Spring Material : Rubber

Warranty : 12 months

Type : Gas-filled

Max Dia. : 251mm

Plate Dia. : 160mm

Packing Size : 24*24*24cm

Service : Sample

Contact Now

Firestone Double Convoluted Air Ride Suspension Spring W01-358-6890/20



Main Products:Air Spring,Convoluted Air Spring,Industrial Air Springs,Air Suspension Spring,Air Compressor,Air Valve,Bus Rubber Bellows,Truck & Trailer Air Bags,Cabin Air Shock,Electric Water Pump.

The product are widely used in many industries:Automotive,heavy-duty vehicle,commercial,wtc.

After years of growth,we have won the good reputation from our customer from all over the world by our excellent quality,intimate service and fast.


Product name:Air Spring
Warranty:12 Months
Firestone:W01-358-6890/20
Contitech : FD 200-19 539
Goodyear:2B9-606
                :578923211


Neway :90557228

Euclid/Meritor After market: E-FS6890

Note: V-Steer I (lift Bag)

Refer Numbers
W01-358-6890
W01-358-6820
W013586890
W013586820
W01,358,6890
W01,358,6820
FD 200-19 539
FD20019539
2B9606
2B9-606
578923211
90557228
E-FS6890
EFS6890

Detailed Data Drawings For W01-358-6890

                           Cross Section View                                                                        Top View Bottom View

Firestone Double Convoluted Suspension Air Ride Spring W01-358-6890/20Firestone Double Convoluted Suspension Air Ride Spring W01-358-6890/20

Rubber Bellows MAX Diameter:251mm
Top Cover Plate Diameter:160mm
Bottom Cover Plate Diameter:160mm
Between Bolt(Nut) Distance on Top Cover Plate:89mm
Between Bolt(Nut) And Air Inlet Distance on Top Cover Plate:44.5mm
Between Threaded Hole Distance on Bottom Cover Plate:89mm
Screw(Nut) Tooth on Bottom Cover Plate:2 X3/8-16UNC
The Air Spring Working Stroke :81mm~274mm
The Maximum Height:274mm
The Minimum Height:81mm
The Compression Height:193mm

Air Spring Components


Inside the World’s No. 1 Air Spring:

Airide springs are available in single, double and triple convolution types plus reversible sleeve models for virtually every conceivable heavy-duty vehicle suspension application.

  1.  Stud - Manufactured as a permanent part of the bead plate assembly for maximum strength and durability. Used to attach the spring to the vehicle’s suspension.
  2. Combo Stud - Serves the dual purpose of mounting the spring to the suspension and providing an entrance for air.
  3. Blind Nut - Also a permanent part of the bead plate assembly. Provides an alternative mounting system to the stud.
  4. Air Fitting - Usually 1/4 N.P.T. Provides an air entrance to the bellows.
  5. Bead Plate - Crimped onto the bellows at the factory for a more durable design and maximum quality control. Allows 100% leakproof testing prior to shipment.
  6. Bellows - The 'air bag' includes four plies of material: an inner layer, two plies of cord-reinforced fabric, and an outer cover. Natural rubber construction provides functional properties to –65F.
  7. Bumper - A solid rubber or engineered plastic device designed to prevent significant damage to the vehicle or suspension in the event of a sudden loss of air pressure in the spring.
  8. Piston - Provides a lower mounting arrangement for the air spring. Controls the characteristics of the spring under changing pressure loads.
  9. Piston Bolt - Attaches the piston to the bellows. Sometimes extended as a means of attaching the spring to the vehicle suspension.
  10. Girdle Hoop - A wire-wound ring molded into the bellows to provide lateral stability in convoluted type springs.

    Composite Piston - Firestone offers a composite fiberglass reinforced plastic piston into its reversible sleeve Airide springs for bus suspensions.



    These pistons are manufactured from a high percentage, glass filled thermosetting resin using stateof-the-art SMC technology. Compared to conventional steel or aluminum pistons, they are lighter, more impact-resistant, and impervious to atmospheric corrosion, water, salt, and ice-melting chemicals, plus their smooth non-porous surface finish virtually eliminates the buildup of harmful dirt and grit. This allows the rubber bellows of the air spring to last much longer due to significantly reduced wear as the bellows flexes up and down the smooth piston. At temperatures as low as -40°F, the new pistons are 100% functional.


Product Picture
Firestone Double Convoluted Suspension Air Ride Spring W01-358-6890/20Firestone Double Convoluted Suspension Air Ride Spring W01-358-6890/20Firestone Double Convoluted Suspension Air Ride Spring W01-358-6890/20Firestone Double Convoluted Suspension Air Ride Spring W01-358-6890/20
