Air Lift Bellows Convoluted Air Spring Contitech FT330-29 546 Firestone W013587994

Name: Air Lift Bellows Convoluted Air Spring Contitech FT33029 546 Firestone W013587994
Brand: GUOMAT
Price: 69.9 USD

Buy cheap Air Lift Bellows Convoluted Air Spring Contitech FT330-29 546 Firestone W013587994 product

Brand Name : GUOMAT

Model Number : W01-358-7994

Certification : ISO/TS16949:2009

Place of Origin : GuangDong, China

MOQ : 6PCS

Price : $69.9-79.9/pc

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1000pcs/week

Delivery Time : 2-8 work days

Packaging Details : Strong Carton Box Or As Customers Need

Product Name : Triple Convoluted Air Spring

Material : Rubber + Steel

Warranty : 12 months

Operation : Gas-filled

Max Dia. : 330mm

Plate Dia. : 231mm

Packing Size : 24*24*24cm

Gas Hole Type : 1/4NPTF

Contact Now

Air Lift Bellows Convoluted Air Spring Contitech FT330-29 546/Firestone W013587994

Quack Detail

Item	Air Spring	Model	W01-358-7994
Condition	Brand new	Warranty	1 Year
Trade Term	FOB,CNF,EXW	Packing	Carton
Delivery	2-8working days	Material	Rubber+Steel
Payment	TT,LC,Western Union	MOQ	1 PC

Technical parameters

❶Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 1pcsX3/8-16UNC

Screw Center Distance of Top Cover Plate : 89 mm

Bottom Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC

Screw Center Distance of Bottom Cover Plate : 140 mm

Screw Center Distance of Bottom Cover Plate : 157.5 mm

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/4 N P.T.F. / 1/4NPTF

❸ Cover Plate

Top Cover Plate Diameter: 231 mm

Bottom Cover Plate Diameter: 231 mm

❹Rubber Bellows

Rubber Bellows MAX Diameter: 330 mm

Rubber Bellows Natural Diameter :300 mm

The Working Stroke : MAX 460 mm to MIN 130 mm

Maximum Height : 460 mm

Minimum Height :130 mmx

Compression Height : 330 mm

❺ Bumper block / Buffer block

With Bumper Block Or Without Bumper Block

❻ Girdle Hoop / Girdle Ring

With Girdle Hoop :Two Pieces of Girdle Hoop

Cross Information

Firestone W01-358-7994

Contitech FT 330-29 546 / 64572

Goodyear 3B12-328

Triangle 4546/6364

Watson&chalin AS-0019-F

Euolid/meritor After market E-FS7994

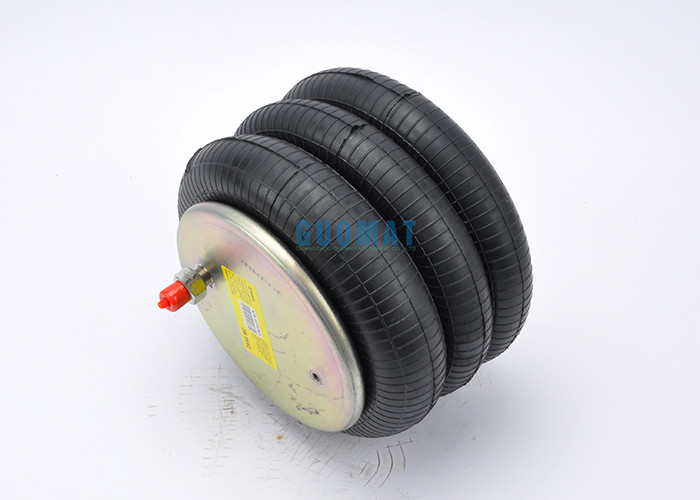

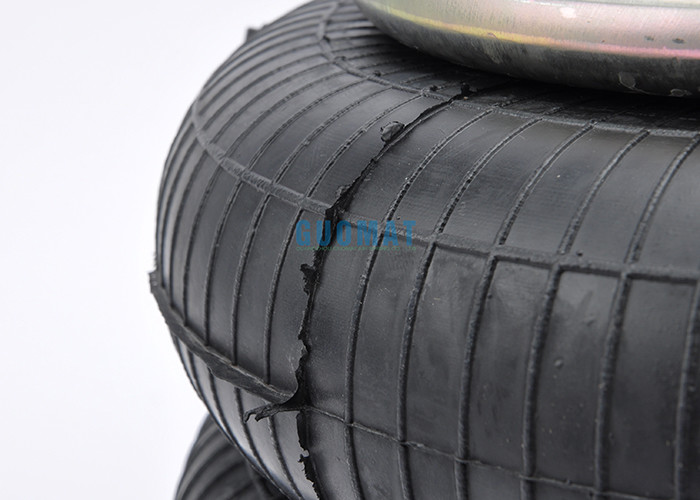

GUOMAT Product Picture

Air Lift Bellows Convoluted Air Spring Contitech FT330-29 546 Firestone W013587994
